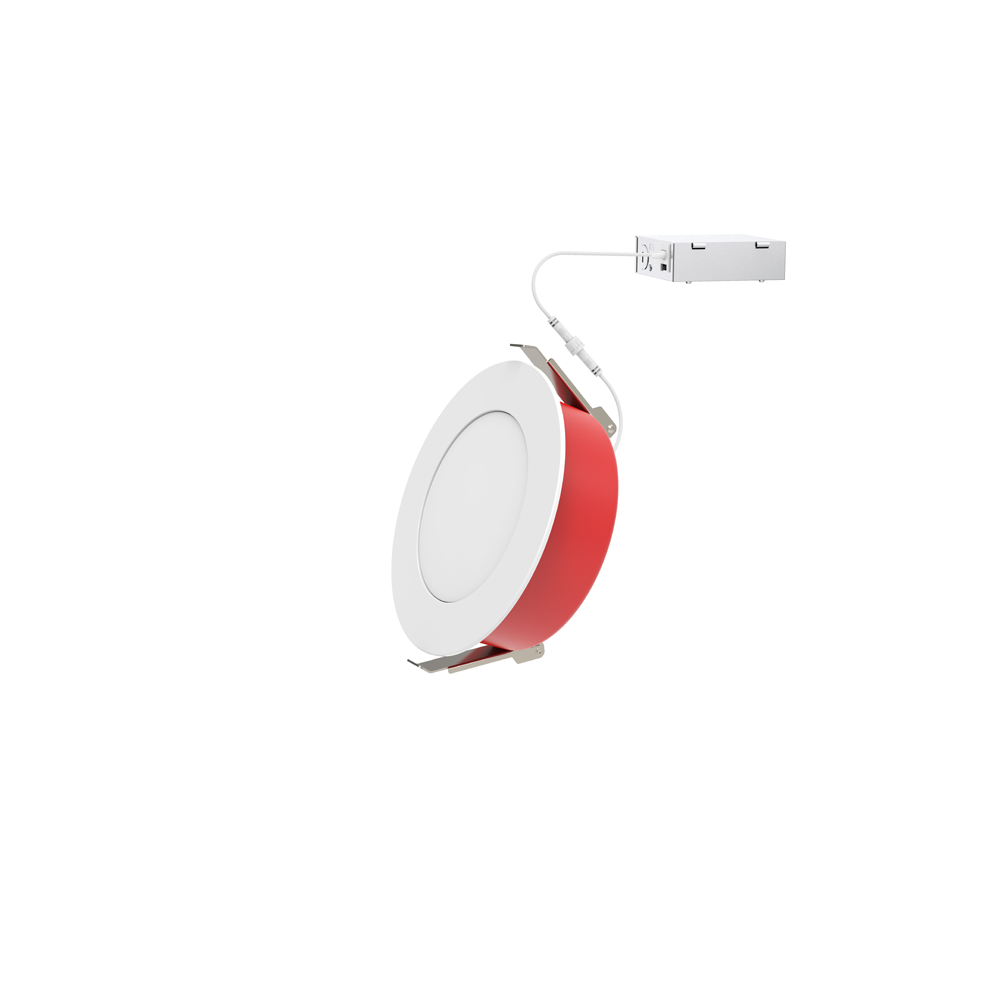

6'' 10W 5CCT LED Fire Rated Downlight Smooth

Lijiacheng Fire rated downlight has been tested to comply with UL263, ASTM E119& CAN ULCS101. Lijiacheng Fire Rated series comes with a design 2-Hour Fire Rating with fireproof ironhousing. In conjunction with fire rating building codes for ceiling mate-rials (example: type-X gypsum), noadditional accessories are needed andeasy to install. Smooth beam distribu-tion and superior color quality forbetter visual comfort. The LED down-lights are 5CCT(2700K, 3000K, 3500K, 4000K, 5000K) tunable and offer fulldimming capability to satisfy moreapplication needs in residential andcommercial settings.

CertificationFeatureApplication
  • FEATURE AND BENEFIT
  • SPECIFICATION
  • DOCUMENTATION
  • Feature:

     - Double Steel Walled Casing filed with Ceramic Fiber Insulation

    - 120V Input, 60Hz

    - PF >0.9

    - CRI 90

    - CCT Selectable from 27/30/35/40/50K

    - 5 years limited warranty

    - UL263 Fire rated up to 2 hours

    - Smooth dimming feature and compatible with a wide variety of dimmers

    -20℃-40℃

    Benefit:

     - Recessed Housing Not Required, Easy Installation and Maintenance

    - IC Rated, Air Tight and Suitable for Wet Location

    - No recessed housing or J-box required

    - No UV or IR radiation

    - Suitable for wet location

    - Energy Star qualify

    - Can be used to conform with the requirements of California Title 24 Part 6

  • Watts

    		10W

    Trim Size(Inch)

    		6

    CRI

    		90
    Item NumberLJC-5FHPD6-C10-XX-ZZV
    Lumens750LM
    Efficacy(lm/w)75
    Life span(Hr)50000
    MOL(Inch)7.01
    MOD(Inch)2.91
    Dimmabletriac
