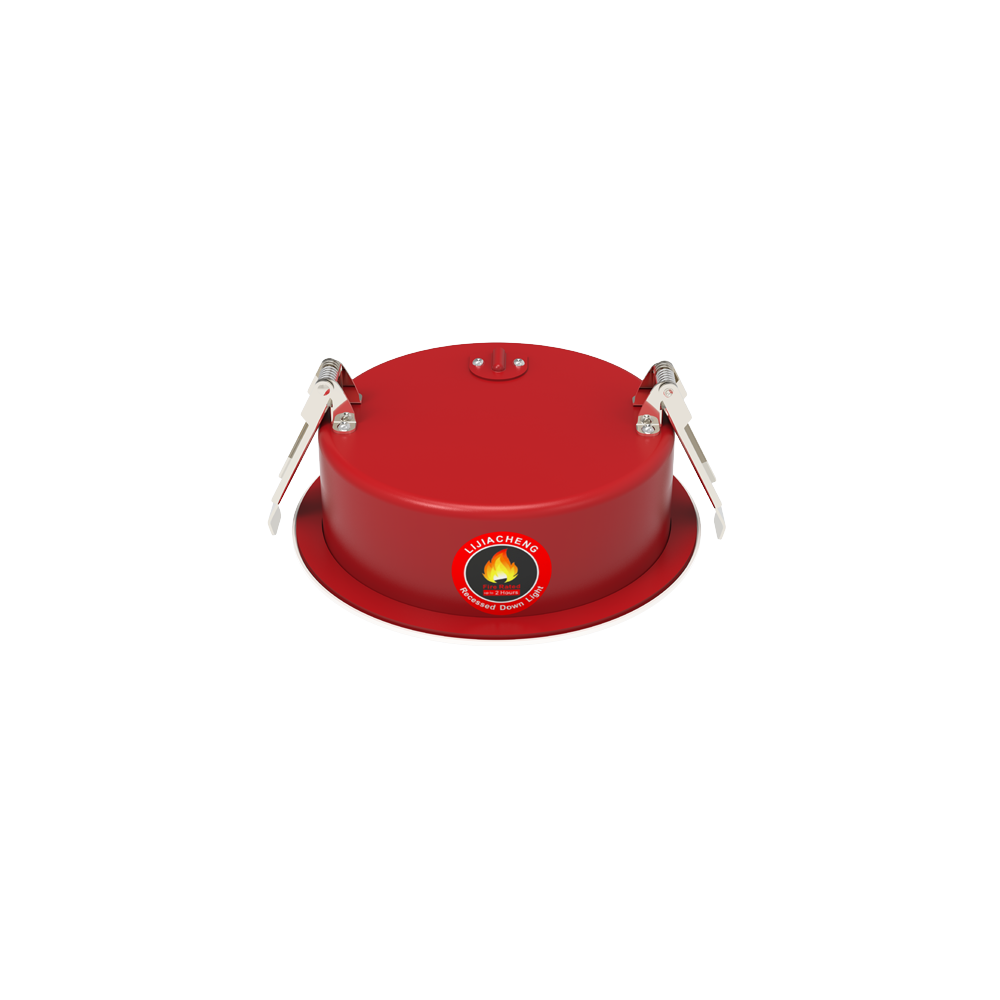

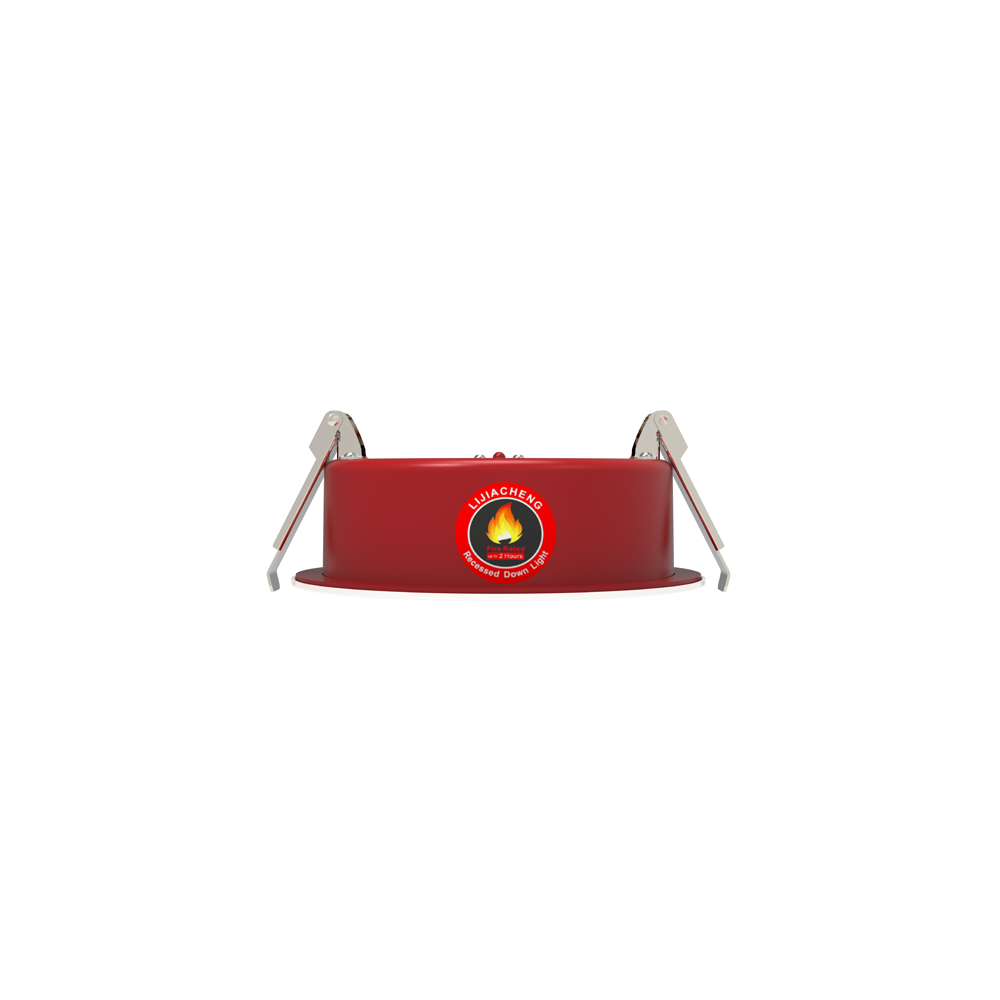

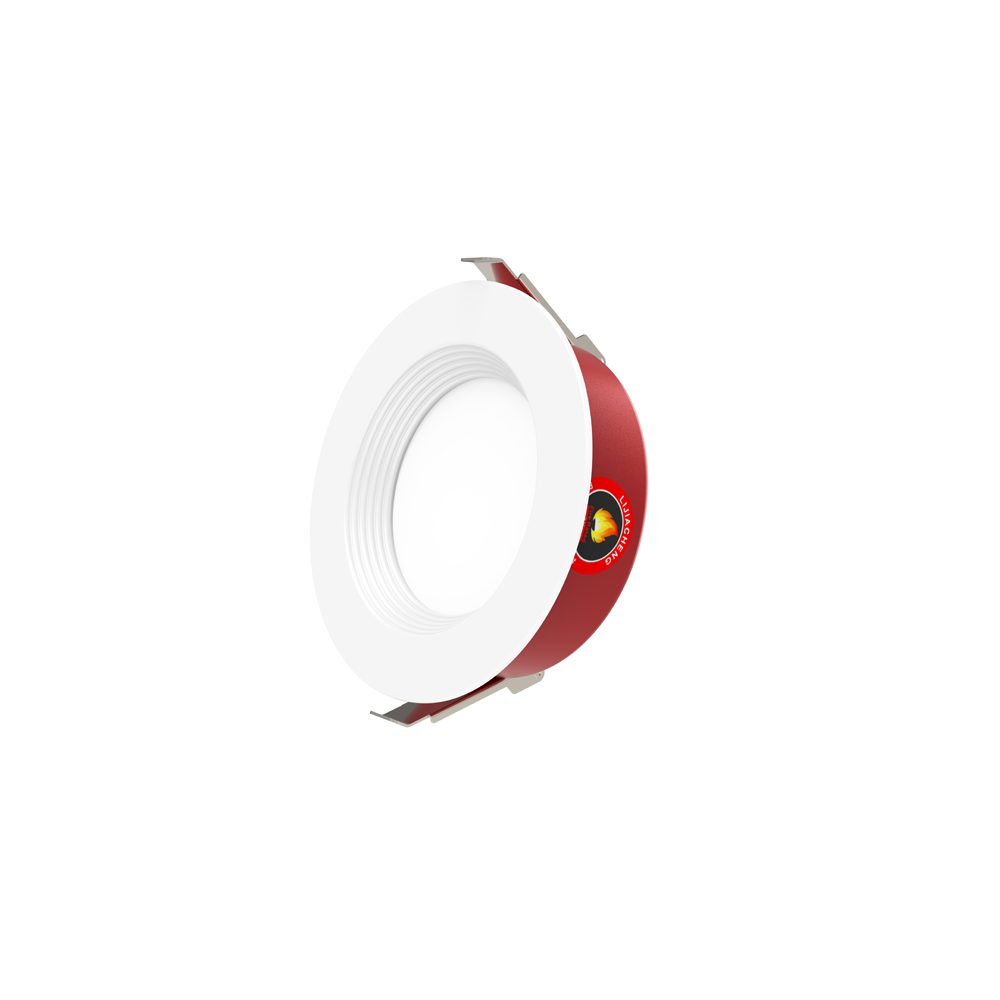

6'' 10W LED CCT Selectable Baffle Fire Rated Downlight Round

Lijiacheng Fire rated downlight has been tested to comply with UL263, ASTM E119& CAN ULCS101. Lijiacheng Fire Rated series comes with a design 2-Hour Fire Rating with fireproof ironhousing. In conjunction with fire rating building codes for ceiling mate-rials (example: type-X gypsum), noadditional accessories are needed andeasy to install. Smooth beam distribu-tion and superior color quality forbetter visual comfort. The LED down-lights are 5CCT(2700K, 3000K, 3500K, 4000K, 5000K) tunable and offer fulldimming capability to satisfy moreapplication needs in residential andcommercial settings.

CertificationFeatureApplication
  • FEATURE AND BENEFIT
  • SPECIFICATION
  • DOCUMENTATION
  • Feature:

    - Durable Aluminum body

    - 120V Input, 50/60Hz

    - PF >0.9

    - CRI 90

    - CCT Selectable from 27/30/35/40/50K

    - 5 years limited warranty

    - Complies with UL 263, tested and certified for 2 hours

    - Smooth dimming feature and compatible with a wide variety of dimmers


    Benefit:

     - Easy install spring clips with J-Box built in eliminates can

    - Type IC, Air-Tight & Wet

    - No recessed housing or J-box required

    - No UV or IR radiation

    - ETL listed for Damp location usage

    - Energy Star qualify

    - Can be used to conform with the requirements of California Title 24 Part 6

  • Watts

    		10W

    Trim Size(Inch)

    		6

    CRI

    		90
    Item NumberLJC-5FHTD6-C10-XX-ZZV
    Lumens750LM
    Efficacy(lm/w)75
    Life span(Hr)50000
    MOL(Inch)7.01
    MOD(Inch)2.91
    Dimmabletriac
