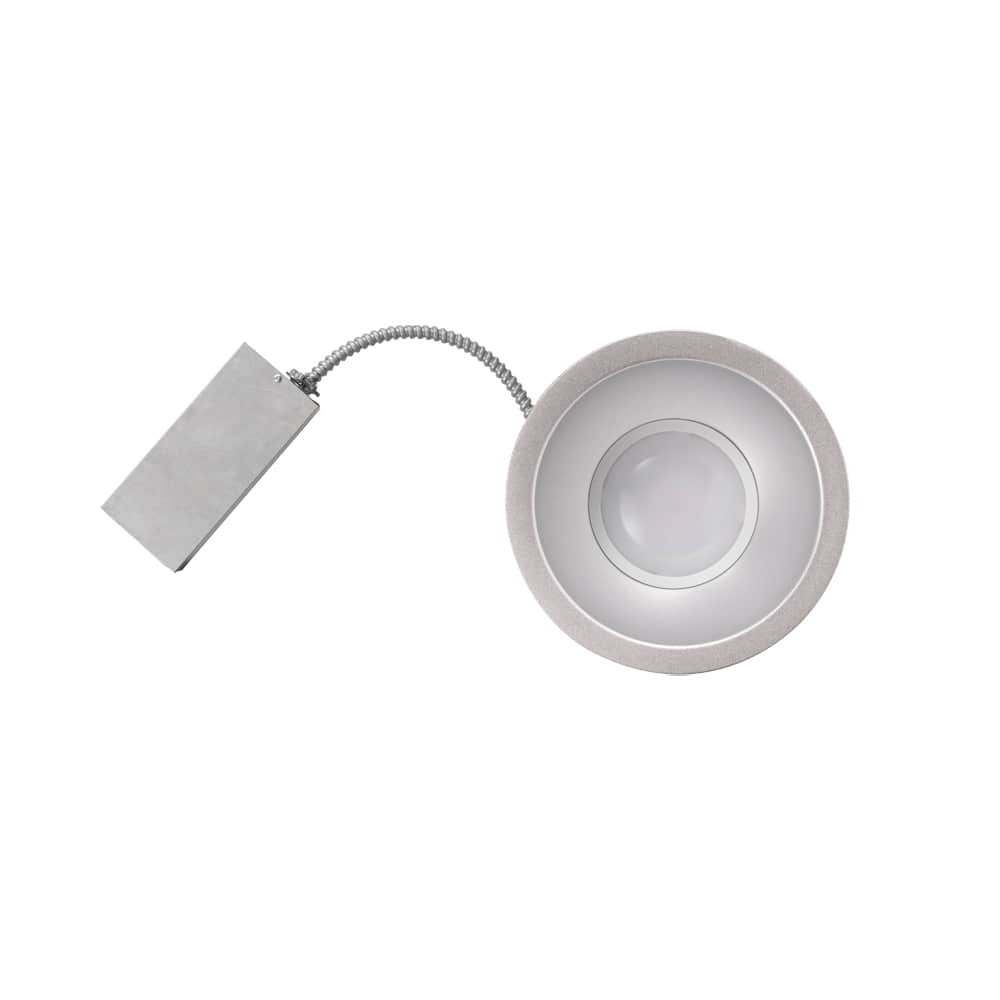

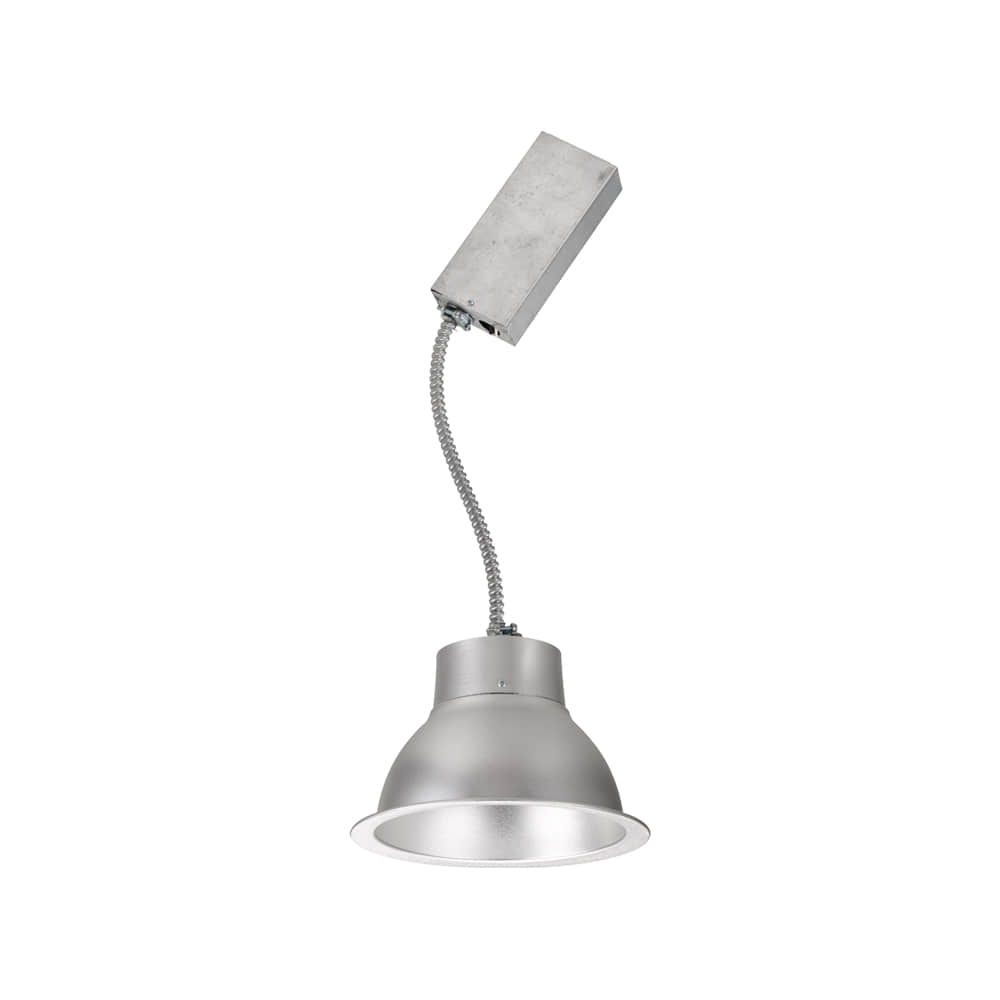

22W 6" Commercial Recessed Downlight Retrofit

LED commercial downlight is an ideal replacement for traditional recessed lighting. At only 15% of the incandescent consumption, these LED replacement downlights produce extremely high lumen output. Innovated with lens, diffuser and reflector provide uniform illumination with minimum glare for a lifetime of 50000 hours of maintenance-free operation, and this elegant design product equipped with a smooth dimming features and it is compatible with majority of dimmer from the market.

CertificationFeatureApplication
  • FEATURE AND BENEFIT
  • SPECIFICATION
  • DOCUMENTATION
  • Feature:

    - Heavy-gauge alumiunm reflector in an anodized clear finish with premium aluminum heat sink for long lasting LED

    - High transmission optical acrylic diffusion lense produce high lumen and consistant color rendering

    - 120-270V Input, 50/60Hz

    - PF >0.9

    - CRI >80

    - Available in wide range of color temperature from 2700K-5000K

    - 5 years limited warranty

    - 0-10V smooth dimming feature and compatiable with a wide variety of dimmers


    Benefit:

    - True replacement of traditional commercial recessed light

    - Excellent performance give the same light quality and brightness as traditional recessed lighting

    - Ideal quick disconnector and pre-wired conduit for easy installation

    - No UV or IR radition

    - ETL listed for WET location usage

    - Energy Star qualify

    - Almost fit in any recessed commercial recessed application

    - More efficient and longer lasting for shorten payback period

  • Watts

    		22W

    Trim Size(Inch)

    		6

    CRI

    		80
    Item NumberLT-CDR6-Z22/UNV-XXDDY
    Lumens1700LM
    Efficacy(lm/w)77
    Life span(Hr)50000
    MOL(Inch)5.43
    MOD(Inch)7.40
    Weight(Lb)2.52
    DimmableY
