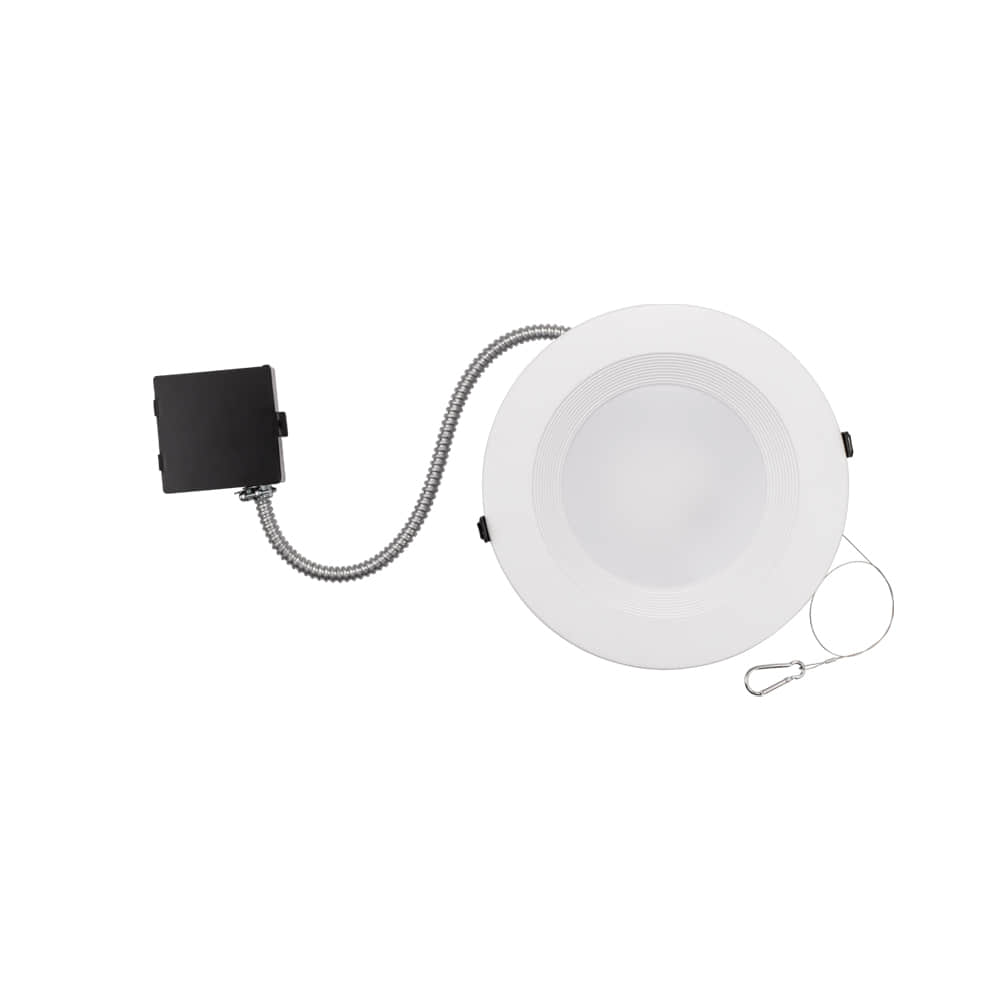

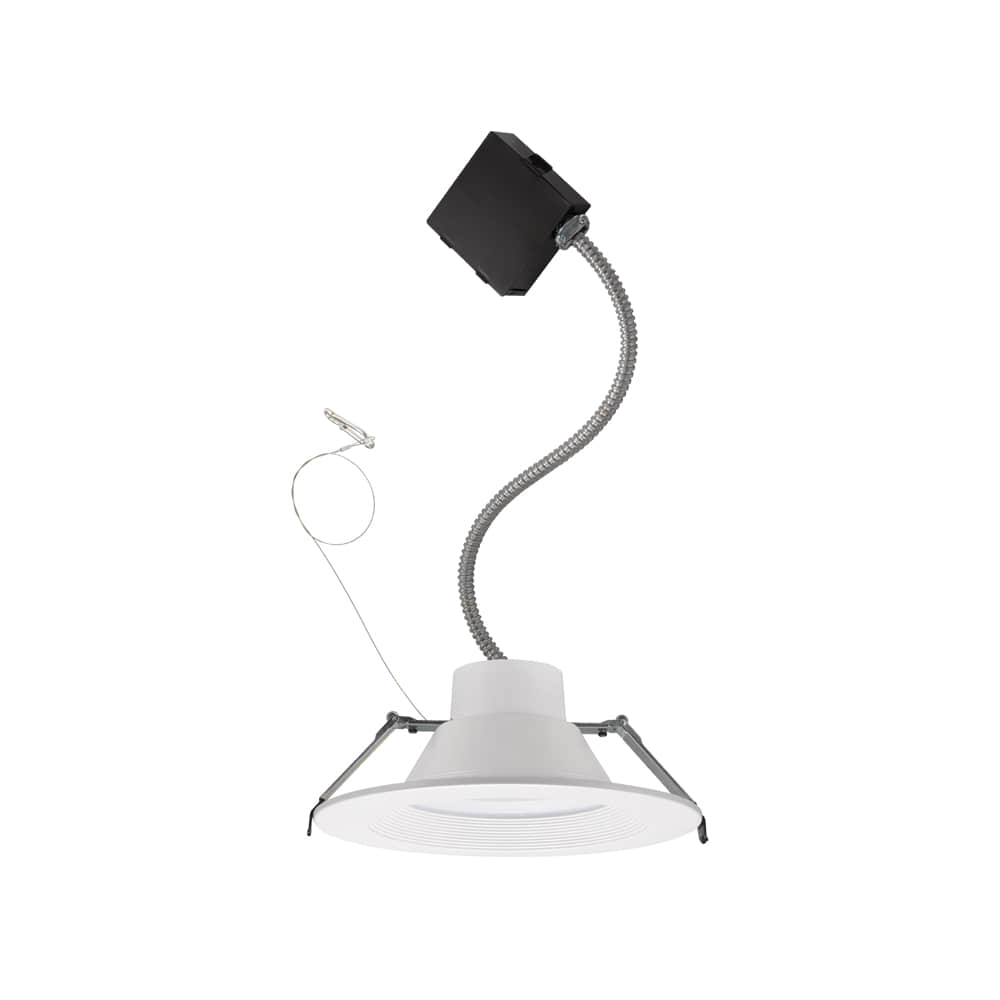

15W 4" 0-10V Commercial Downlight Retrofit

LED commercial downlight is an ideal replacement for traditional recessed lighting. At only 15% of the incandescent consumption, these LED replacement downlights produce extremely high lumen output. Innovated with lens, diffuser and reflector provide uniform illumination with minimum glare for a lifetime of 50000 hours of maintenance-free operation, and this elegant design product equipped with a smooth dimming features and it is compatible with majority of dimmer from the market.

CertificationFeatureApplication
  • FEATURE AND BENEFIT
  • SPECIFICATION
  • DOCUMENTATION
  • Feature:

    - Die cast aluminum housing routes heat away from electrical components

    - 120-270V Input, 50/60Hz

    - PF >0.9

    - CRI 80/90 options

    - Precision engineered optical stack creates uniform light distribution that maximizes lumen output

    - Available in wide range of color temperature form 2700K-5000K

    - 5 years limited warranty

    - Smooth 0-10V dimming feature and compatiable with a wide variety of dimmers


    Benefit:

    - True replacement of traditional commercial recessed light

    - Quick connect for easy installation

    - High optical transparency diffusion lens provides enhanced visual comfort

    - No UV or IR radiation

    - ETL listed for WET location usage

    - Almost fit in any recessed commercial recessed application

    - More efficient and longer lasting for shorten payback period

  • Watts

    		15W

    Trim Size(Inch)

    		4

    CRI

    		80/90
    Item NumberHT-ICCDR4-C15-10V-XXDS-3YY
    Lumens1100LM
    Efficacy(lm/w)73
    Life span(Hr)50000
    MOL(Inch)2.84
    MOD(Inch)5.10
    Dimmable0-10V
