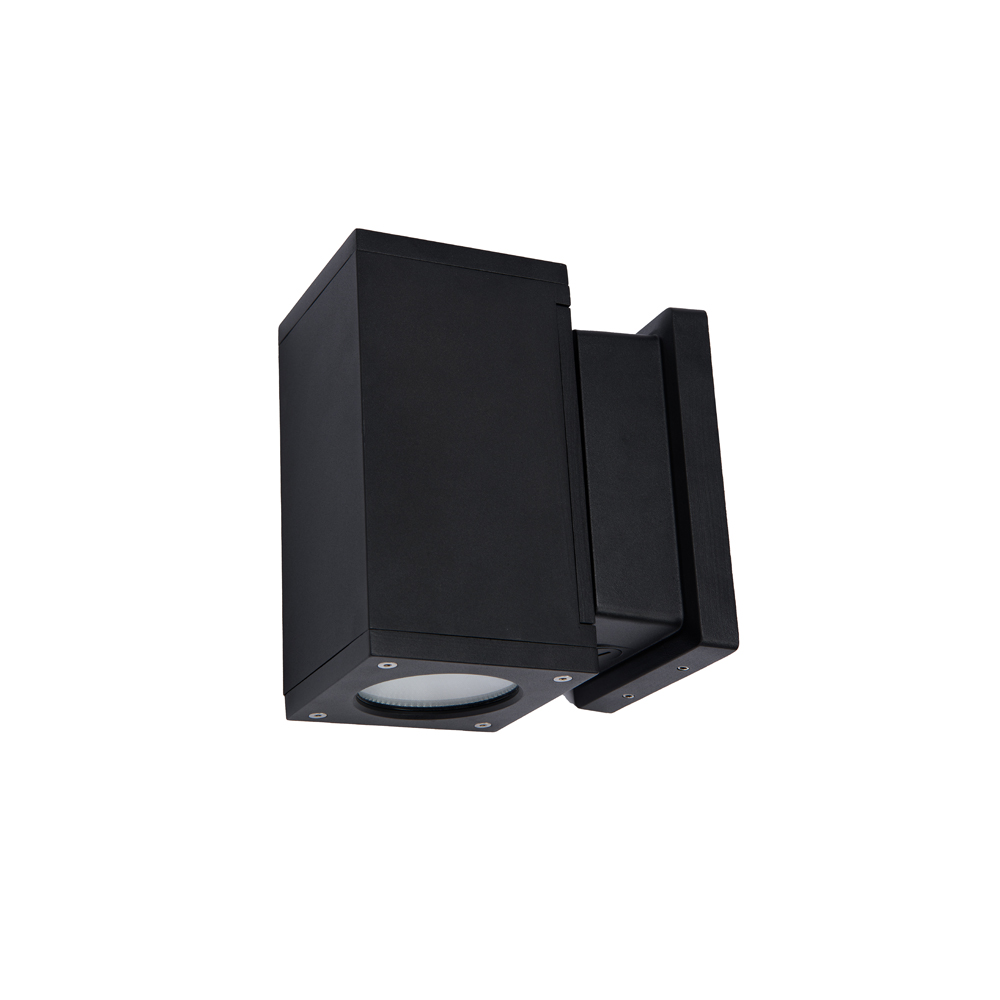

25/30/35W Select LED Cylinder Lighting Square Up&Down Light Wall Scone

This modern outdoor LED downlight is a sleek and simplealuminum cylinder attached to a rectangular back plate.These magnificent outdoor light fixtures will look greaton your porch, regardless of the architecture and colorsof your house. Made with die-cast aluminum, it is water-proof，weatherproof and corrosion resistant. This dualup and downlight style fixture sends beautiful illumina-tion up from the top and out from the bottom of thedesign. Provider high efficient and uniform lighting, noUV or lR radiation, excellent color consistency, no flickeror buzzing.

CertificationFeatureApplication
  • FEATURE AND BENEFIT
  • SPECIFICATION
  • DOCUMENTATION

    • Feature:

      - Die-cast aluminum housing with durable paint finish

      - Plastic optical lens protected by gasket tempered glass clear cover

      - Aluminum extruded heat sink designed to facilitate heat dissipation to reduce LED junction temperature for maintaining lighting output and life span of the LED

      - 100-277V input, 50/60Hz

      - PF>0.9

      - CRI>80

      - Surface mount, 3key hole fixing points in the installation plate directly to the ceiling

      - Available in wide range of color temperature from 2700K-5000K

      - Available in 25W/30W/35W wattages.

      - Different beam angle of optical lens options

      - Photocell provides automatic on/off for optional

      - Ambient temperature: -20℃ to 45℃

      - 5 years limited warranty


      Benefit:

      - Ideal replacement for traditional halogen cylinder lighting

      - Excellent performance give the same light quality and brightness as halogen cylinder lighting

      - Provide high efficient and uniform lighting

      - No UV or IR radiation

      - Excellent color consistency

      - Flickering and noise free

      - ETL Listed for WET location usage

      - Energy Star compliance

      - More efficient and longer lasting for shorten payback period

      - No bulb replacement is required


  • Watts25/30/35W
    Length(Inch)6.69
    Width(Inch)2.76
    Height(Inch)7.64
    Item NumberHT-WM3FS435D/UNV-3082-V#
    Lumens2300/2800/3300LM
    Efficacy(lm/W)92
    Life Span(Hr)50000
    DimmableY
