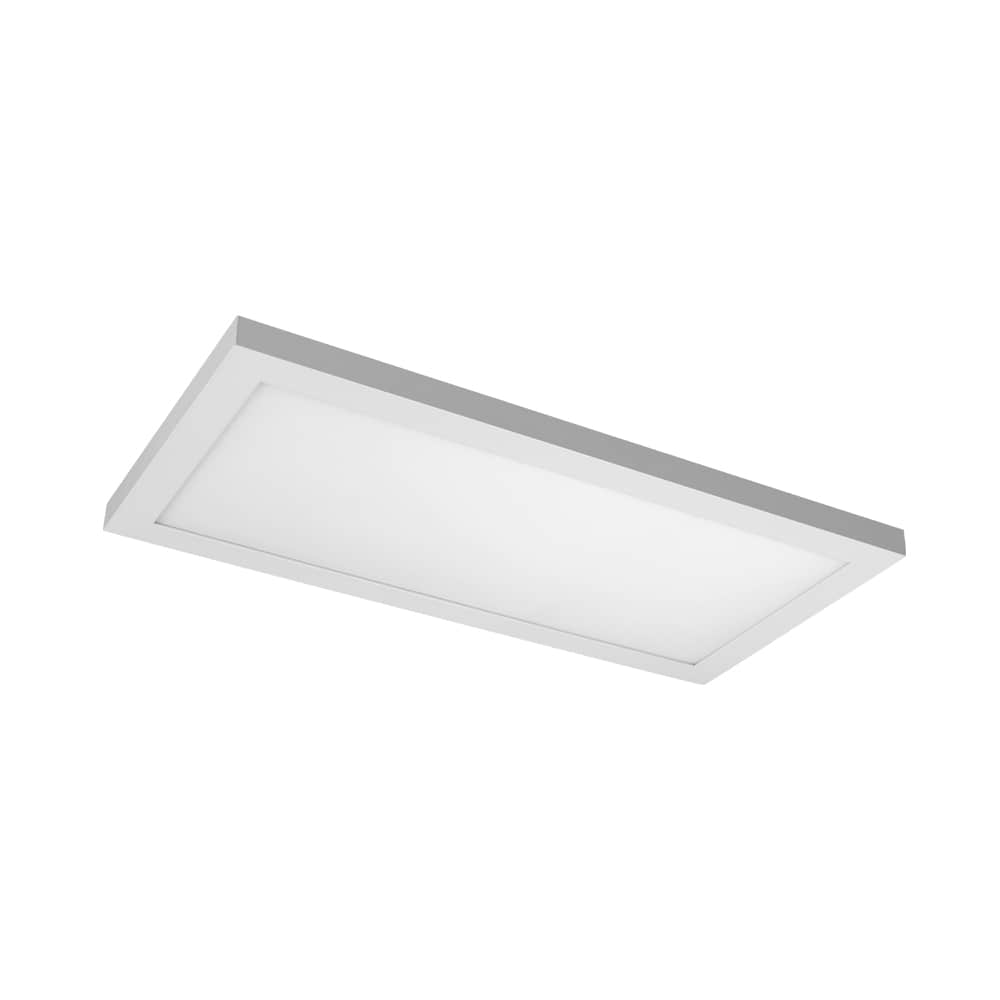

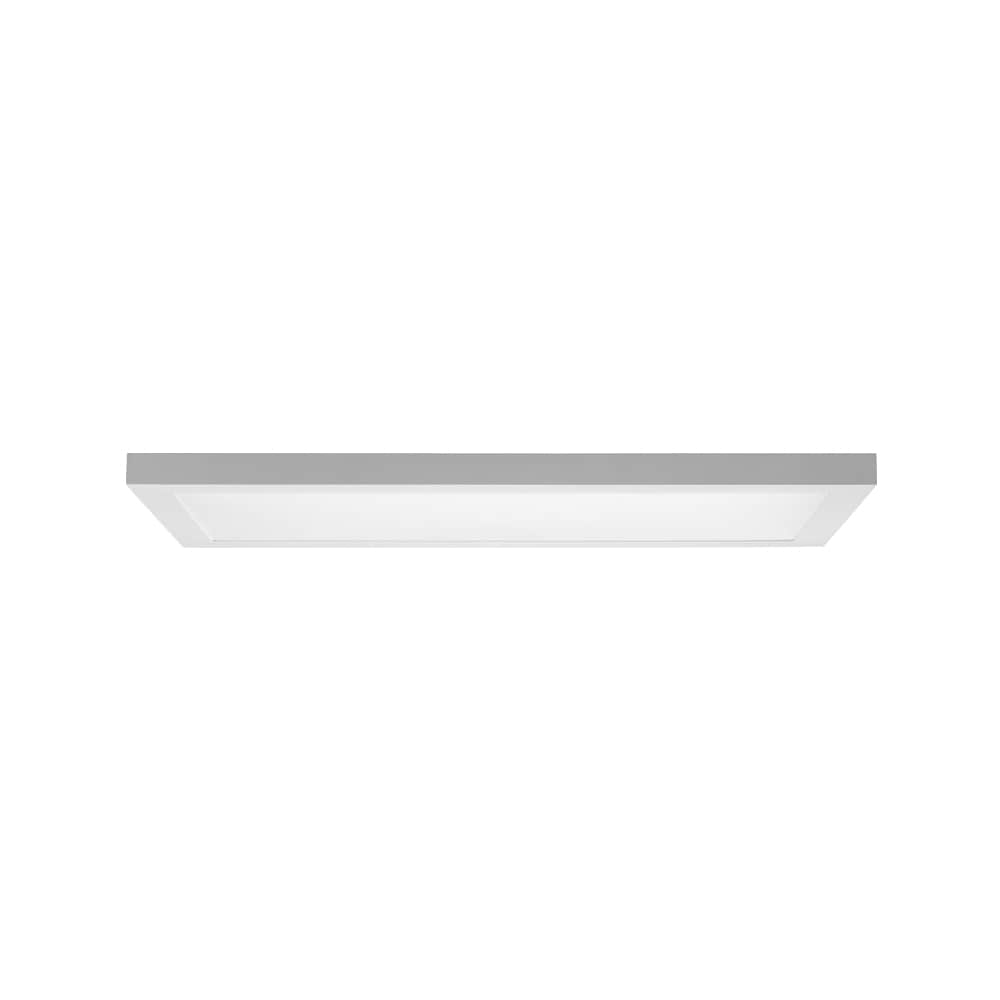

50W 1x4 CCT Selectable Internal Driver Edge-Lit LED Flat Panels 3CCT

Lijiacheng Edge-Lit LED Flat Panel Luminaire features with hign quality driver and PMMA light guide plate, and it is the best energy efficient alternatives solution for linear fluorescent recessed fixtures. Standard size of 1×1 and 1×2 are designed to open up the room and distribute light spaciously along both the vertical and horizontal work space and providing suitable light without any of the maintenance issues associate with fluorescent tubes and ballasts. Constructed with a durable aluminum frame and LED lifetime rating of at least 50000 hours. It's adds the function of 3000/3500//4000//4500/5000K CCT Selectable.

CertificationFeatureApplication
  • FEATURE AND BENEFIT
  • SPECIFICATION
  • DOCUMENTATION
  • Feature:

    - Durable anodized aluminum frame with high reflective, matter powder coated paint

    - Frosted polystyrene lens delivers even and diffuse ambient illumination that's ideal for spaces where glare-free lighting is essential

    - Luminaires are available in 1×1, 1×2, 2×2, 2×4, 1×4

    - Interal driver solution make the luminaires easier for surface mounting, no need frame mounting kit

    - White tunable in 5 discrete color temperatures 3000k/3500k/4000k/4500k/5000k for 1×2 and 1×1, 3 color options of 2×2, 2×4 and 1×4 for commercial useage

    - 120V or 120-277V Input, 50/60Hz

    - PF>0.9

    - CRI>80

    - Ambient temperature: -20℃ to 40℃

    - 5 year limited warranty

    - Smooth TRIAC dimming for 1×1 and 1×2, 0-10V dimming for 1×4, 2×2, 2×4, and compatible with a wide variety of dimmers


    Benefit:

    - Internal Driver Edge Lit luminaire with ultra slim design

    - Architectural recessed luminaire create even light distribution

    - Ideal replacement for existing T12/T8 lay-in troffer fixture

    - Excellent performance give the same light quality and brightness as existing fluorescent troffer fixture

    - High efficient diffuser reduce glare and maximize performance without pixelation

    - Complete protection against short circuits, over currents and overloads

    - Excellent and accurate color consistency

    - Flickering and noise free

    - UL and DLC Premium compliance

    - Substaintial lumen performance and superior life period eliminate maintenance

  • Watts

    		50W

    Length(Inch)

    		47.76

    Width(Inch)

    		11.93

    Height(Inch)

    		1.02
    Item NumberHT-G3Y-USFP14-C50/UNV-LXXDZV-S
    Lumens5000LM
    Efficacy(lm/w)100
    Life span(Hr)50000
    Weight(Lb)7.52
    DimmableY
