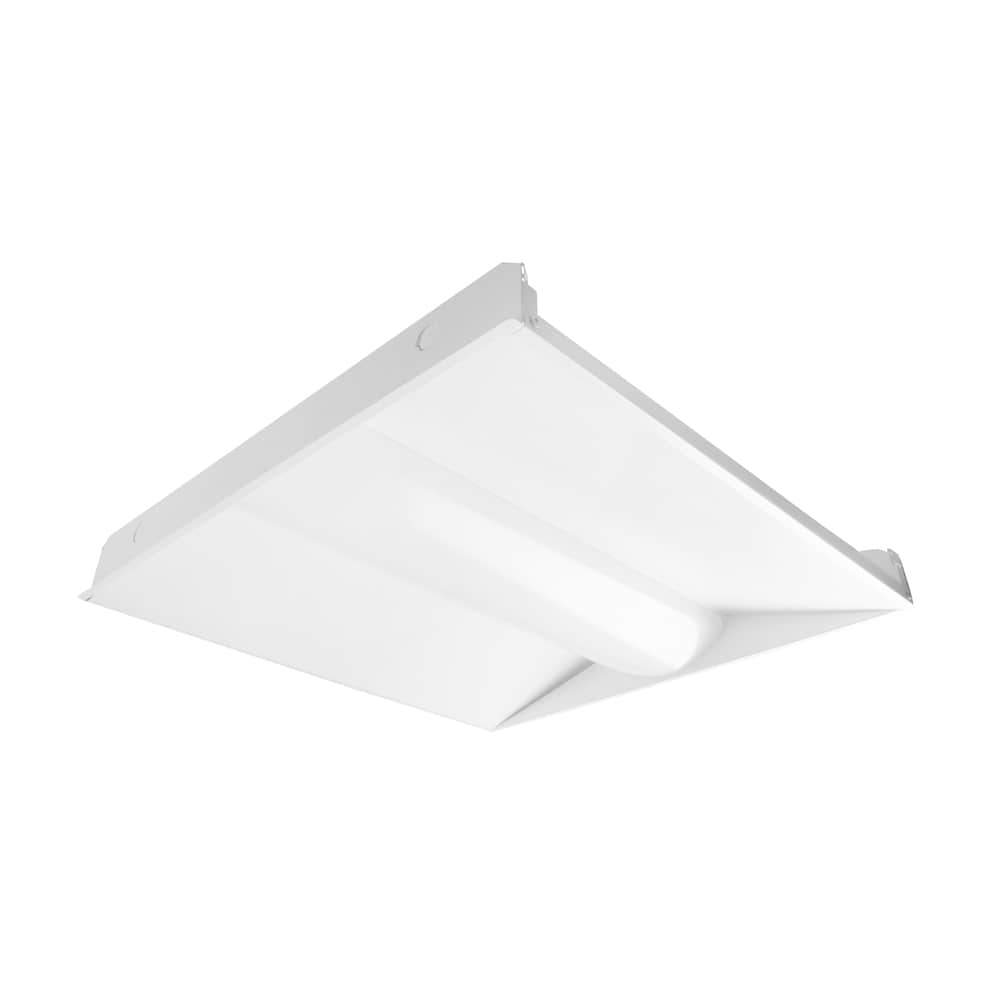

25W 2x2 LED Center Basket Recessed Troffer
Lijiacheng LED Center Basket Recessed Troffer provides a higher quality lighting environment for offce, hospital, retail and school applications with high efficacy, superb color and energy efficiency. It's presents a perfectly smooth white panel with soft, luminous glow for exceptional visual comfort and ambiance. Available in 2×2 and 2×4 with 50000hrs life time. Operating between 120 and 277 volts, smooth 0-10V dimming feature and compatible with a wide variety of dimmers, high-performance LED light engines and drivers to provide superior lumen maintenance.
- FEATURE AND BENEFIT
- SPECIFICATION
- DOCUMENTATION
-
Feature:
- 22 gauge galvanized steel housing with high reflective, matte powder coated paint
- Attractive and high transmission architectural dual optical lens

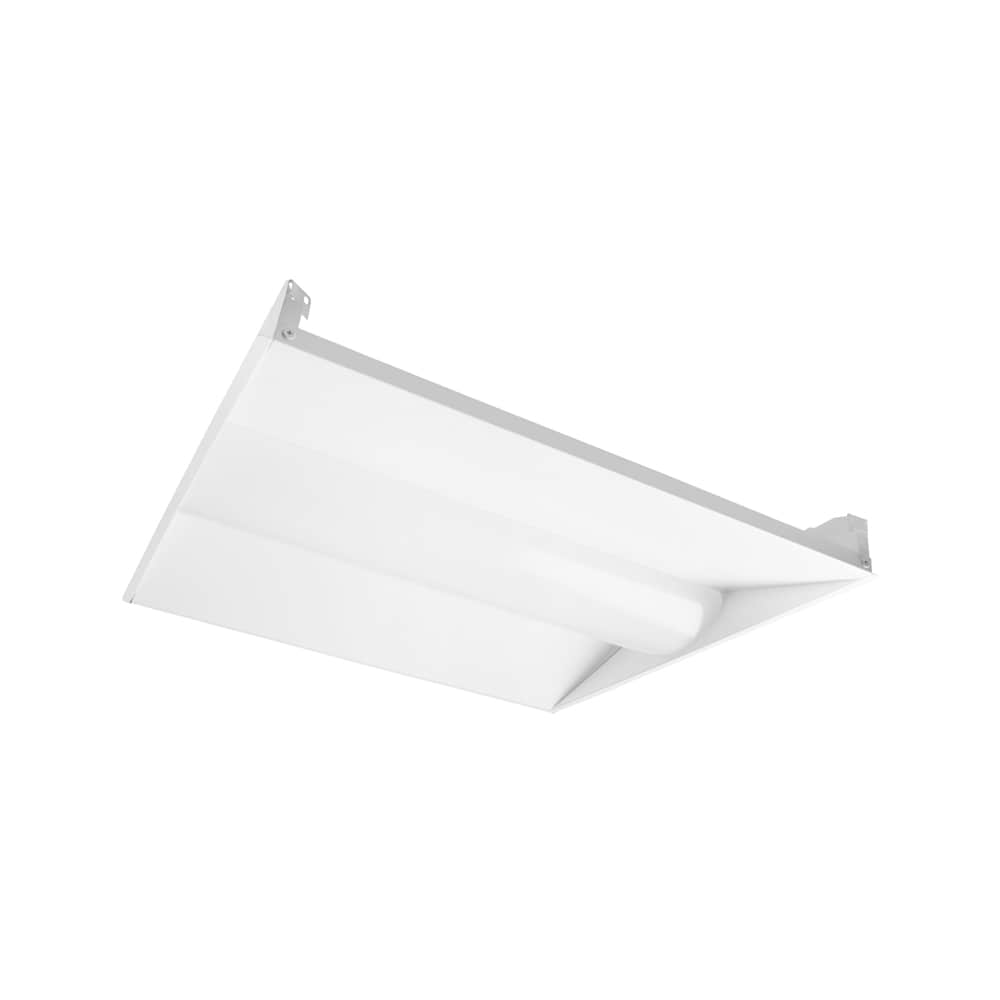

- Luminaires are available in 2X2 and 2X4
- 120-277V Input, 50/60Hz
- PF >0.9
- CRI >80
- 120° degree beam angle even lighting distribution
- Available in wide range of color temperature from 3500K-5000K
- Ambient temperature: -20℃ to 50℃
- Suitable for damp location use
- 5 year limited warranty
- Smooth 0-10V DC dimming feature and compatible with a wide variety of dimmers
Benefit:
- Architectural recessed luminaire combines direct and indirect light projection
- Ideal replacement for existing T12/T8 lay-in troffer fixture
- Excellent performance give the same light quality and brightness as existing fluorescent troffer fixture
- High efficient diffuser reduce glare and maximize performance without pixelation
- Complete protection against short circuits, over currents and overloads
- Excellent and accurate color consistency
- Flickering and noise free
- UL and DLC Premium compliance
- Substaintial lumen performance and superior life period eliminate maintenance
-
Watts
25W Size
2x2 Item Number HT-G1CBTRO22-C25/UNV-ZXXA Lumens 3125LM Efficacy(lm/w) 125 Life span(Hr) 50000 CCT 3500/4000/5000K Dimmable Y -
