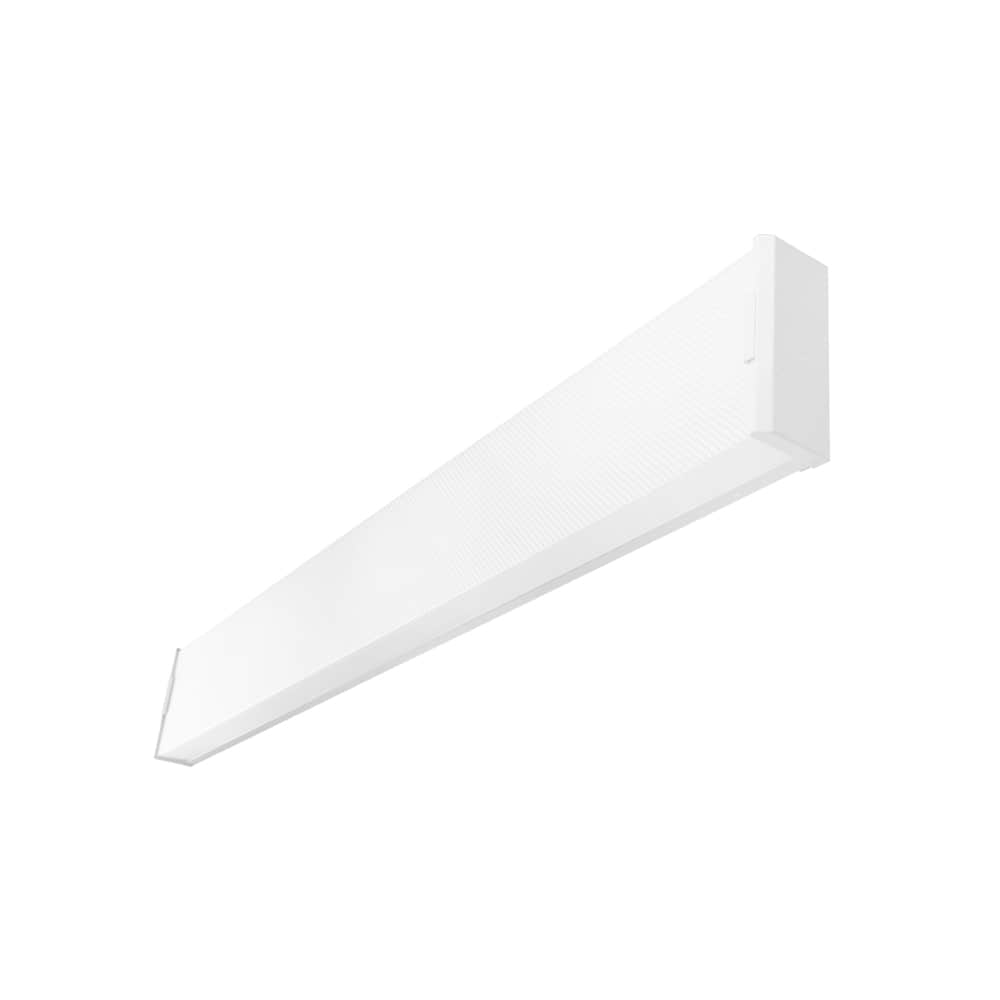

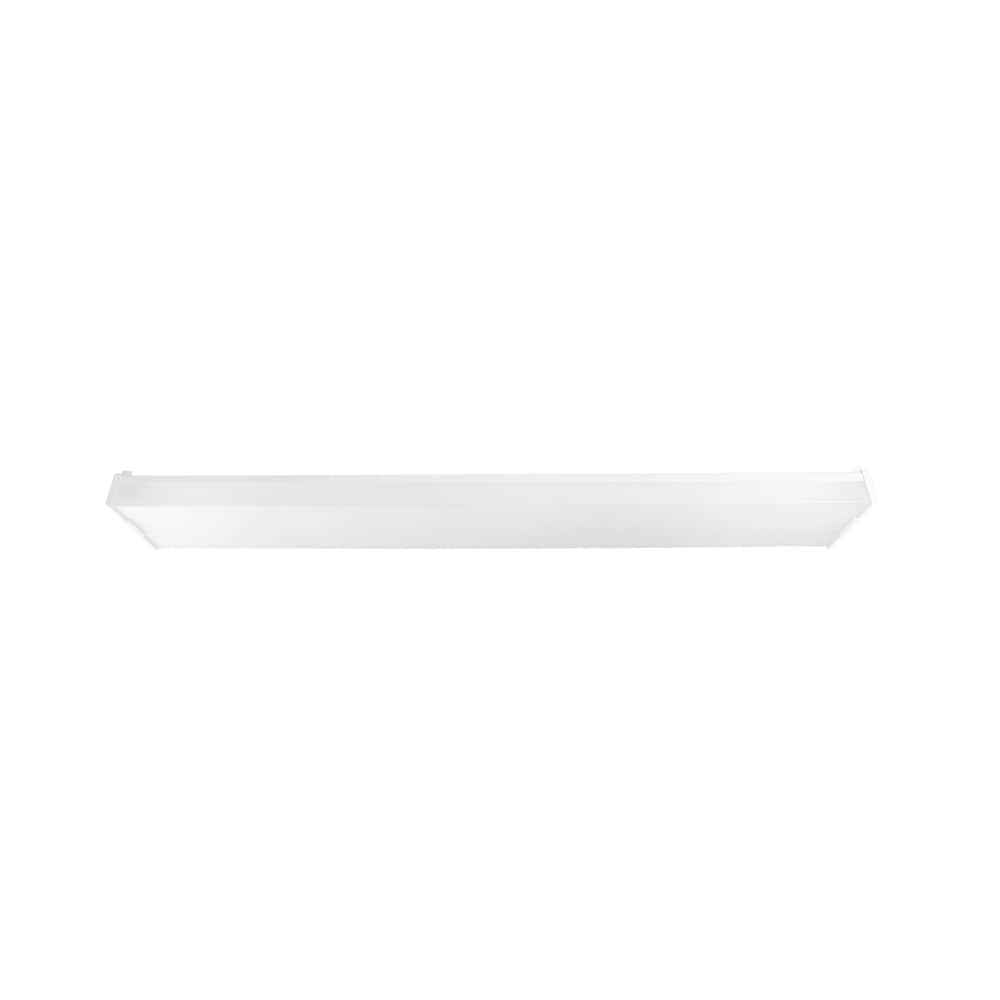

20W 2FT Linear LED Wrap-Around

Lijiacheng ECO LED Wrap-around Light Fixture are Widely used in Office, School, Hospital, Library, Public Room, Utility Areas, badminton and so on. The superior LED technology delivers consistent color and CRI for a uniform and comfortable lighting. Installation is quick and simple when mounting onto the surface of the ceiling. Constructed with a durable steel housing body and this linear LED Wrap-Around is designed for many years of reliable operation, rating of at least 50000 hours.

CertificationFeatureApplication
  • FEATURE AND BENEFIT
  • SPECIFICATION
  • DOCUMENTATION
  • Feature:

    - 22 gauge galvanized steel housing with high reflective, matte powder coated paint

    - Attractive and high transmission architectural dual optical lens

    - Luminaires are available in 2X2 and 2X4

    - 120-277V Input, 50/60Hz

    - PF >0.9

    - CRI >80

    - 120° degree beam angle even lighting distribution

    - Available in wide range of color temperature from 3500K-5000K

    - Ambient temperature: -20℃ to 50℃

    - Suitable for damp location use

    - 5 year limited warranty

    - Smooth 0-10V DC dimming feature and compatible with a wide variety of dimmers


    Benefit:

    - Architectural linear luminaire combines direct and comfortable light projection

    - Perfect solution for commercial and residential applications

    - Excellent performance give the same light quality and brightness as existing fluorescent wrap-around fixture

    - Surface mount or stem suspended

    - Complete protection against short circuits, over currents and overloads

    - Excellent and accurate color consistency

    - Flickering and noise free

    - UL and DLC compliance

    - Substaintial lumen performance and superior life period eliminate maintenance

  • Watts20W
    Size2FT
    Item NumberHT-WRAP-2FT-C20/UNV-ZXXA
    Lumens2160LM
    Efficacy(lm/W)108
    Beam Angle(°)120
    CCT3500/4000/5000K
    DimmableY
