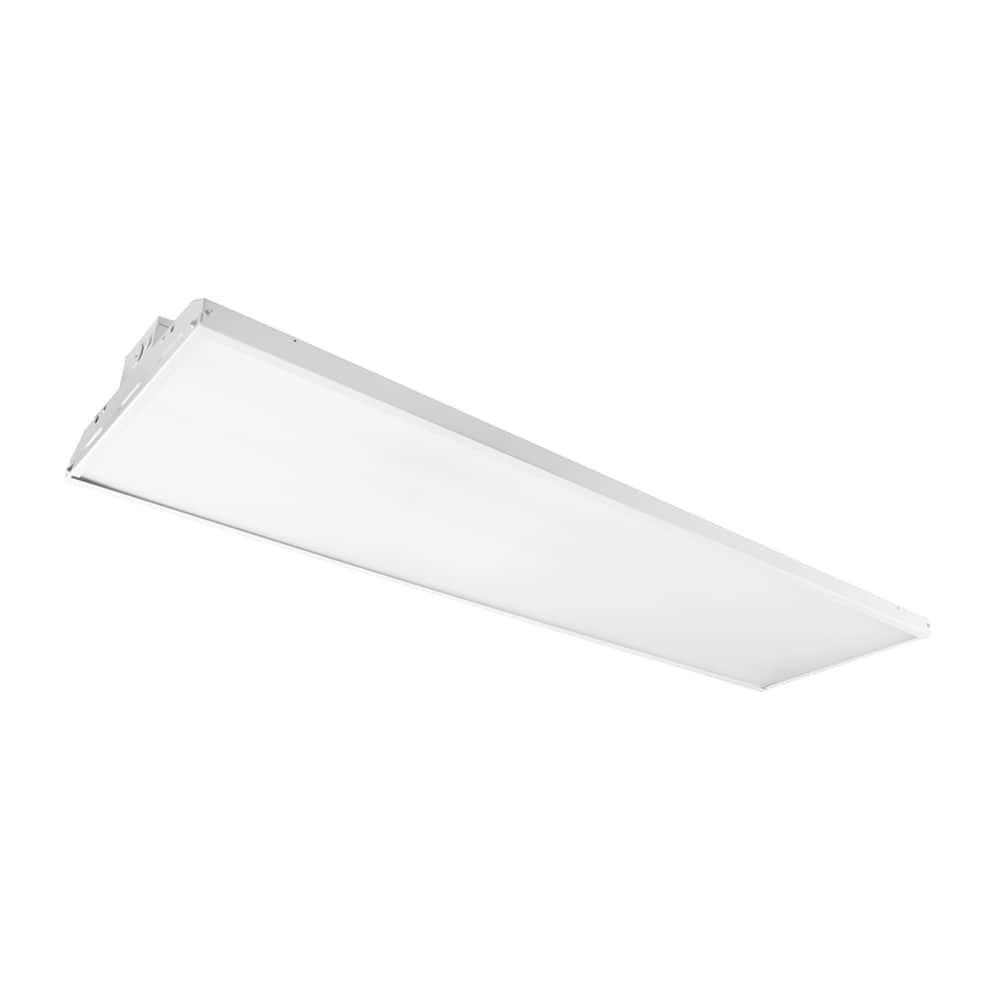

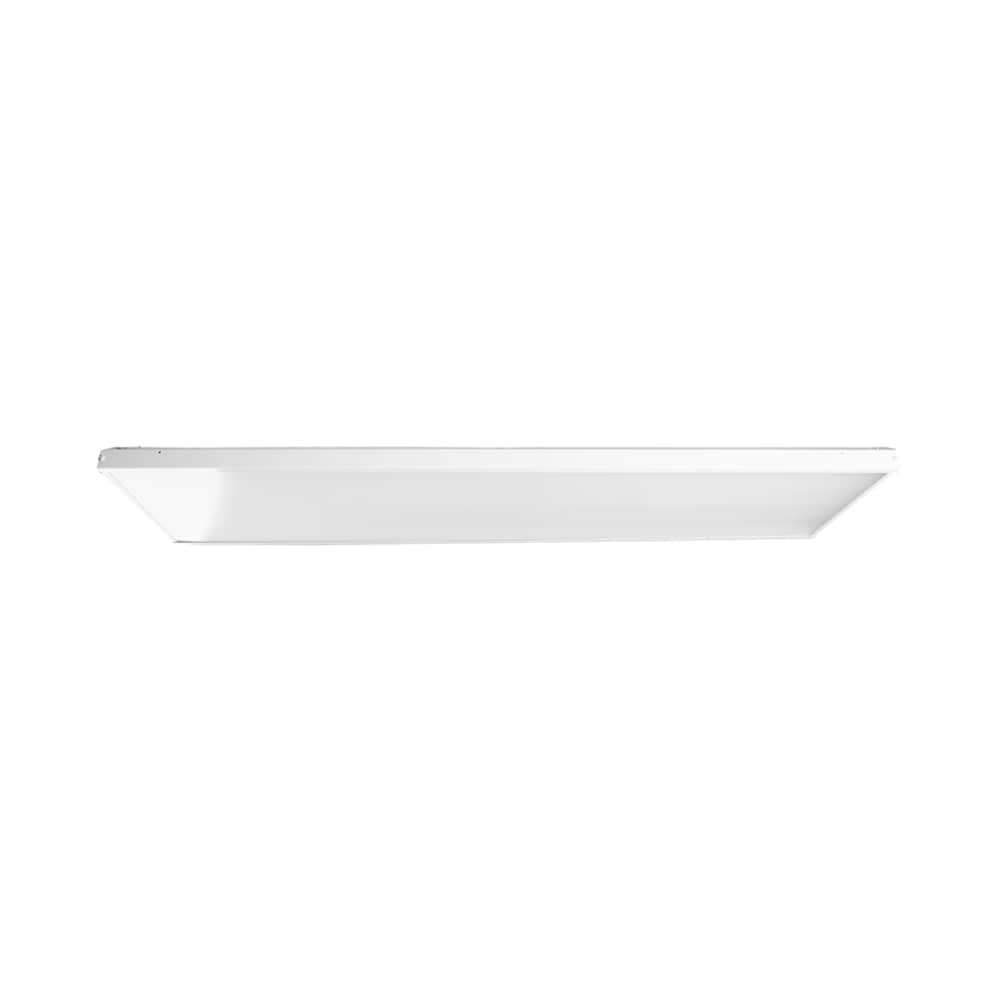

162W 2FT Linear LED Highbay

Lijiacheng Linear Highbay light is a new generation of eco-friendly luminaire offering maximum light output, exceptional illumination, and energy savings. This new LED luminaire gives budget-conscious customers a reliable LED highbay solution. In addition to its low initial cost, the fixture saves up to 60% in energy costs over HID and costs less to operate than popular fluorescent products not to mention the maintenance savings.

CertificationFeatureApplication
  • FEATURE AND BENEFIT
  • SPECIFICATION
  • DOCUMENTATION
  • Feature:

    - 22 gauge galvanized steel housing with high reflective, matte powder coated paint

    - Attractive and high transmission architectural dual optical lens

    - Luminaires are available in 2 feet and 4 feet

    - 120-277V Input, 50/60Hz

    - PF >0.9

    - CRI >80

    - 120° degree beam angle even lighting distribution

    - Available in wide range of color temperature from 4000-5000K

    - Ambient temperature: -20℃ to 50℃

    - Suitable for damp location use

    - 5 year limited warranty

    - Smooth 0-10V DC dimming feature and compatible with a wide variety of dimmers


    Benefit:

    - Ideal replacement for existing T12/T8 fluorescent strip fixture

    - Excellent performance give the same light quality and brightness as existing T12/T8 fluorescent strip fixture

    - Easy installation and access

    - Multiple mounting kits are available

    - Complete protection against short circuits, over currents and overloads

    - Excellent and accurate color consistency

    - Flickering and noise free

    - UL and DLC Premium compliance

    - Substaintial lumen performance and superior life period eliminate maintenance

  • Watts162W
    Size2FT
    Item NumberHT-LHB-2FT4L-SC162/UNV-ZXXA
    Lumens21060LM
    Efficacy(lm/W)130
    Beam Angle(°)120
    CCT4000/5000K
    DimmableY
