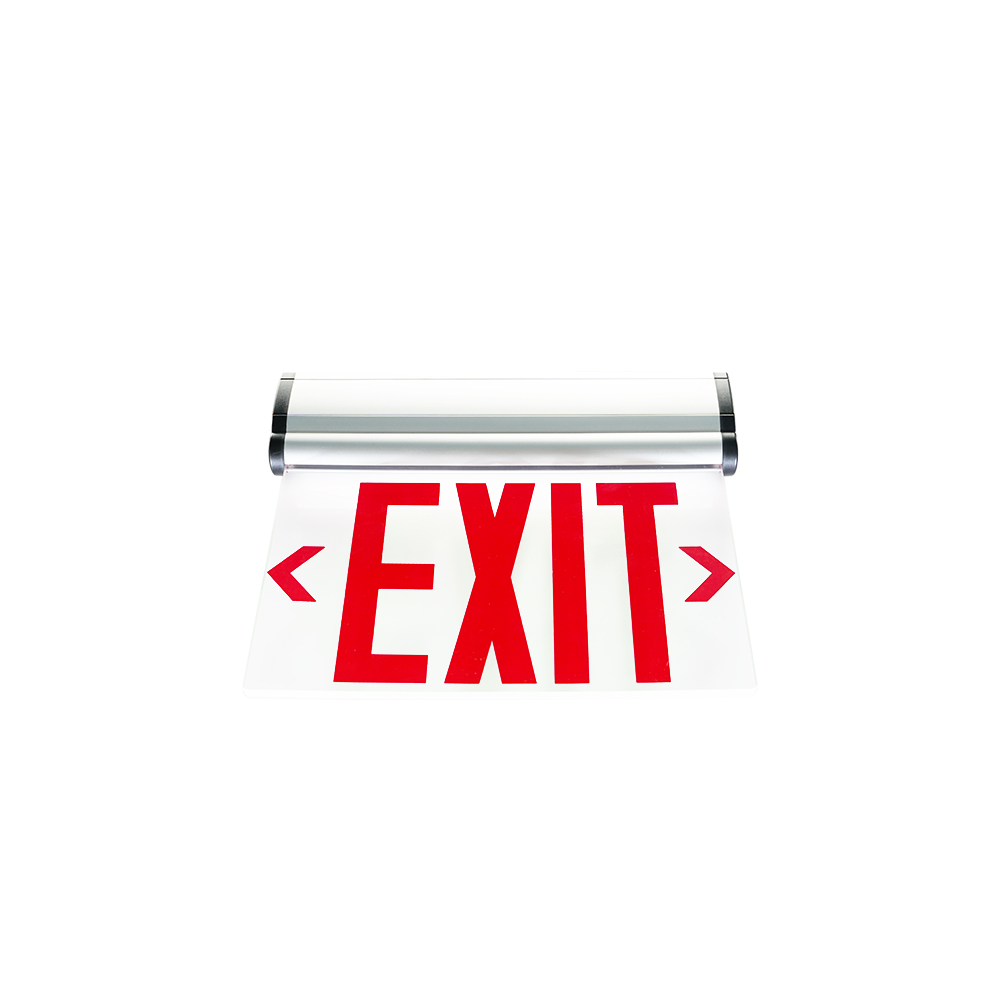

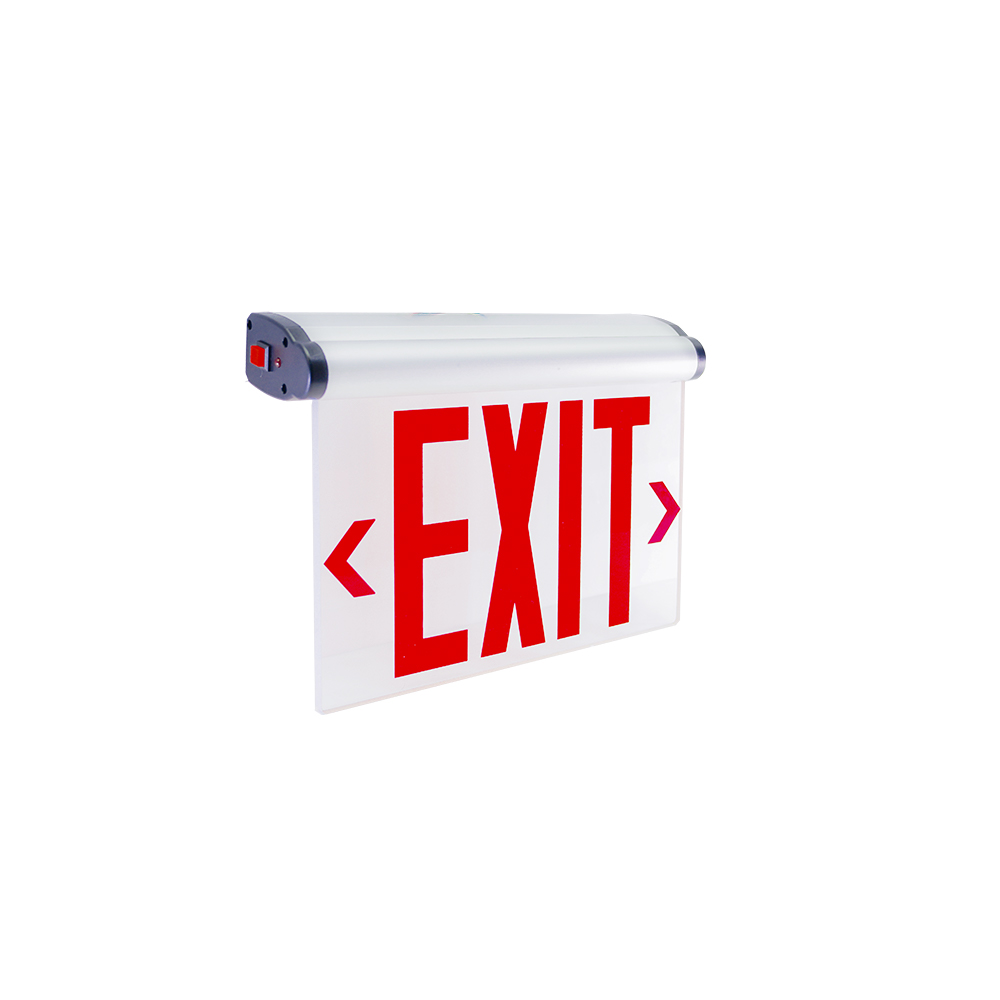

Aluminum Edge-lit Exit Sign

Sleek, space-saving edge-lit design with impact-resistant clear acrylic and bright LEDs for uniform illumination. Features a rotatable base (90° adjustment) for flexible top/end mounting on walls or ceilings. Includes directional chevron arrows and offers red/green lettering options. Equipped with a built-in nickel-cadmium battery for 90-minute emergency backup during outages. Lightweight, durable, and ideal for modern egress signage in commercial or public spaces.

CertificationFeatureApplication
  • FEATURE AND BENEFIT
  • SPECIFICATION
  • DOCUMENTATION
  • Feature:

    - Built-in Ni-MH 4.8V 600mAH battery

    - For min. 90 minutes emergency operation

    - Max. 24 hours for full recharge time


    Benefit:

    - Aluminum housing with high grade acrylic plate

    - Optional clear or mirror face

    - Single or double face universal

    - Test switch and charge indicator

    - Allow top, back or end mount

    - Indoor damp location listed

    - Five years warranty

  • Watts

    		3W

    Material

    		PMMA
    Item NumberLJC-7-MJ
    LumensN/A
    Efficacy(lm/w)N/A
    Life span(Hr)5years
    Input Frequency120/277V，50/60Hz
    DimmableN/A
